            <p>Southbend Range has been a leading manufacturer of commercial cooking equipment since 1898. Their products are designed to provide chefs with the highest quality and performance, while also being easy to use and maintain. Southbend offers a wide variety of commercial cooking equipment, from ranges and ovens to griddles, fryers, and steamers.</p>
            <h2>High-Quality Construction</h2>
            <p>Southbend products are designed for maximum durability and reliability. All of their products are made from heavy-duty stainless steel, with many featuring a one-piece welded frame for extra strength and stability. Southbend ovens are designed to provide even heat distribution, ensuring consistent results every time.</p>
            <h2>Easy to Maintain</h2>
            <p>Southbend Range products are designed to be easy to maintain. All of their products feature easy-to-clean surfaces and removable parts for quick cleaning. In addition, Southbend offers a full line of genuine replacement parts, so you can always keep your equipment running at peak performance.</p>




                        The Robertshaw® 1720 Series Thermomagnetic Safety Valve is a control used to cut off the flow of gas to the burner in the event of a pilot outage. The magnet assembly is energized by voltage generated by a thermocouple that is heated by the pilot flame. When this flame is extinguished, the thermocouple voltage decreases until a spring overcomes the magnetic force and closes off both the pilot and main gas. This control can be used for commercial and residential ovens, infrared heaters, chicken and pig brooders, recreational vehicle gas appliances and many more applications requiring automatic safety valves.
Features and Benefits

300°F (149°C) ambient temperature rated and 350°F (177°C) versions availableJ models available with separate pilot inlet/outlet tube connectionsK models are pilot outlet onlyCompatible with other Robertshaw models such as the BJWA, FD, and GS series thermostatsRoHS compliantWARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


10184 Southbend Range

10184




                        Robertshaw® thermocouples are the industry leader for gas heating and appliances. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited. Thermocouples are placed in gas applications to detect existence of a flame for safety purposes by shutting off the potential gas flow to a burner. The Robertshaw thermocouples are made of two different metals with various lengths. A thermocouple 18” (460mm) long has a lower resistance and higher electrical output compared to a 72” (1830mm) thermocouple which has a higher resistance (longer wire) and, therefore, lower electrical output. The 1900 Series are T-46 thermocouples which have a threaded nut attached and a tinnerman clip included.
Features and Benefits

Easy burner installation with attached threaded nutStainless steel outer jacket for long life and resistance to heat blisteringCombination of copper and nickel alloys for good electrical conductivityMica washer to insulate from shorting conditionsTinnerman clip includedVarious lengths available for multiple applicationsWARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


1161521 Southbend Range

1161521

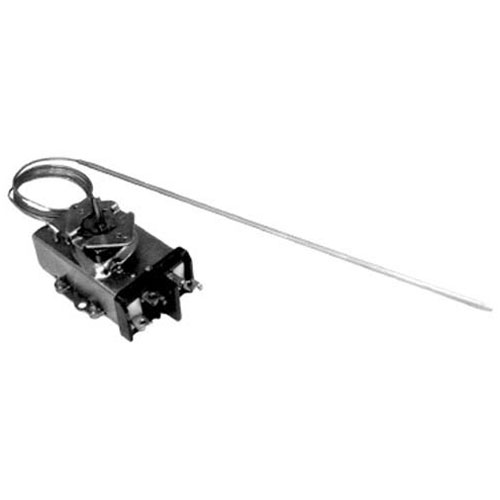

                        The Robertshaw® 4290 Series Gas Thermostat is a snap-acting hydraulic thermostat and used to provide temperature control by interrupting gas flow to the burner. The 4290 Series gas thermostat is available for a wide variety of applications including small ovens, griddles, brooders, warming cabinets, and fryers.
Features and Benefits

Capable up to 30,000 BTUsAvailable in various temperature ranges, with temperature control up to 600°F (316°C)Snap-acting from Off position to full gas flowAdjustable bypass key and bypass settings are optionalApplicable to use with high capacity gas operated diaphragm valves (700-800 Series)Adapts to limited mounting spaceBulb and capillary assemblies supplied in nickel plated copper or stainless steelDials in heat resistant plastic are includedAmbient temperature is 300°F (149°C)


1054000 Southbend Range

1054000

1054099 Southbend Range

1054099




                        700 Series - Millivolt
The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.
Features and Benefits

Gas cock dial marking Off - Pilot - OnPilot outlet 1/4” tubingAmbient temperature of -40°F to 175°FTerminal type combination screw/spadeMaximum inlet pressure 14” WC (0.5 PSI)Standard NEMA terminalsInlet filtered screenVarious gas types: natural, manufactured, mixed, LP, and LP/air mixturesRoHS compliant


1055999 Southbend Range

1055999

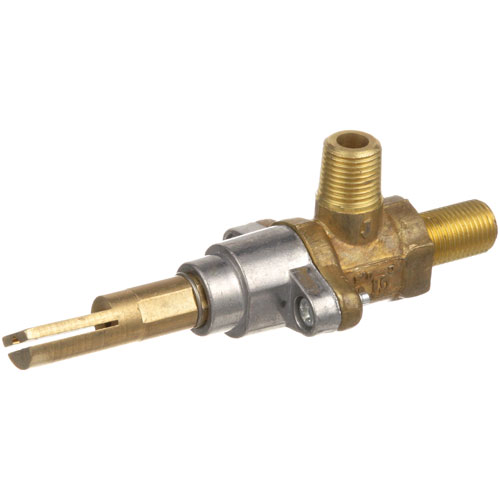

                        .240 stem flat height, flat down, 2" stem (from center of inlet), 1/8" pipe inlet with needle valve and orifice hood for L.P. or natural gas applications. Valve comes packaged in a plastic bag with needle and orifice hood included. For most L.P. gas applications tighten hood down against needle. For most natural gas applications tighten hood down against needle and then back it off 1-1/4 turns. In either case adjust hood until burner maintains a constant blue flame.
• BTU Capacity - 57,000
• A.G.A. and C.G.A. Approved #L1565001



4440398 Southbend Range

4440398




                        The Robertshaw® 5225 Series Limit Control is designed for any appliance where temperature protection is needed. All 5225 Series controls are non-adjustable, factory calibrated, and feature negative biased power element diaphragms. The 5225 Series is a proven safety control for commercial and specialty applications. They are available in automatic or manual reset versions with temperature settings from 425°F to 600°F (218°C to 316°C).
Features and Benefits

Bulb and capillary assemblies available in nickel plated copperAvailable in manual reset or automatic operationControl function is designed to interrupt power in the appliance circuit at the calibrated temperature


1054200 Southbend Range

1054200




                        The Robertshaw® 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snapaction mechanism is precise and reliable. This direct acting series of thermostats is suitable for the commercial cooking industry.Features and BenefitsKN models are NAK filled diastats with temperature ranges up to 975°F (524°C)Rugged and compact design for versatility and long lifeBulb and capillary available in copper, nickel plated copper and stainless steel (most models)Plastic coating available for protection against moisture, dust, etc. (most models)Dials of heat resistant plastic availableRX millivolt models with hermetically sealed reed switchStem flat in down positionAmbient temperature 200°F (93°C)


116-1452 Southbend Range

116-1452




                        700 Series - Millivolt The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.
Features and Benefits

Gas cock dial marking Off - Pilot - OnPilot outlet 1/4” tubingAmbient temperature of -40°F to 175°FTerminal type combination screw/spadeMaximum inlet pressure 14” WC (0.5 PSI)Standard NEMA terminalsInlet filtered screenVarious gas types: natural, manufactured, mixed, LP, and LP/air mixturesRoHS compliant


1182152 Southbend Range

1182152




The Robertshaw 1970 Series Thermocouple Uni-Couple® design allows for installation to virtually all pilot burners. The versatile zip nut may be pushed, pulled or threaded onto the thermocouple's rolled threads for proper positioning in every application.Features and BenefitsEasy burner installation with attached threaded nutStainless steel outer jacket for long life and resistance to heat blisteringCombination of copper and nickel alloys for good electrical conductivityMica washer to insulate from shorting conditionsTinnerman clip includedVarious lengths available for multiple applicationsWARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


1182580 Southbend Range

1182580

1164037 Southbend Range

1164037




                        The Robertshaw® Unitrol® 700 Series Bleed Control Gas Valves combine a manual main and pilot gas valve, a separate automatic safety pilot valve, pilot adjustment valve, and a diaphragm valve. The regulated models also feature “straight line” gas pressure regulation. Robertshaw diaphragm gas valves are single function, and are excellent replacements for solenoid gas valves. Models are available with or without a gas cock and regulated or non-regulated. Standard features include pilot outlet, pilot gas filter and pilot adjustment key.
Features and Benefits

Normally closed solenoidCompact size with high flow ratesStandard NEMA terminalsInlet filtered screenVarious gas types: natural, manufactured, mixed, LP, and LP/air mixturesMultiple actuators availableRoHS compliant


1053995 Southbend Range

1053995

1053996 Southbend Range

1053996




                        700 Series - Line Voltage
The Robertshaw® 700 Series Line Voltage Gas Valves offer the same replacement flexibility as the 24 Volt combination controls. Line Voltage models are available in 120 and 240 Volts AC. Features include three-position outlets, multi-positional capability and capacities ranging up to
720,000 BTU.
Features and Benefits

Slotted safety magnetGas cock dial marking Off - Pilot - OnAmbient temperature of -40°F to 175°FPilot outlet 1/4” tubingCover type for conduit connectionInlet filtered screenRoHS compliant


1164804 Southbend Range

1164804

1161439 Southbend Range

1161439




                        The Robertshaw® 4350 Series Gas Thermostat is a combination gas cock and by-pass type thermostat. It is available with both by-pass and pilot adjustments. With these thermostats, the gas is turned on and the temperature setting made with a single turn of the dial. The 4350 Series is available for a wide variety of applications, especially ranges and griddles.
Features and Benefits

Highly adaptable because of multiple orientations and number of outletsMounted, via flange nipple, above or below the manifoldAvailable with various temperature rangesFront adjustment for pilot and by-passModulating seat actionBulb and capillary available in copper, nickel plated copper and stainless steel


1186680 Southbend Range

1186680




                        The Robertshaw® 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16” swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.
Features and Benefits

Gas cock dial marking Off - Pilot - OnPilot outlet 1/4” tubingAmbient temperature of -40°F to 175°FCombination screw/spade terminal typeMaximum inlet pressure 14” WC (0.5 PSI)Standard NEMA terminalsInlet filtered screenVarious gas types: natural, manufactured, mixed, LP, and LP/air mixturesMultiple actuators availableRoHS compliant
